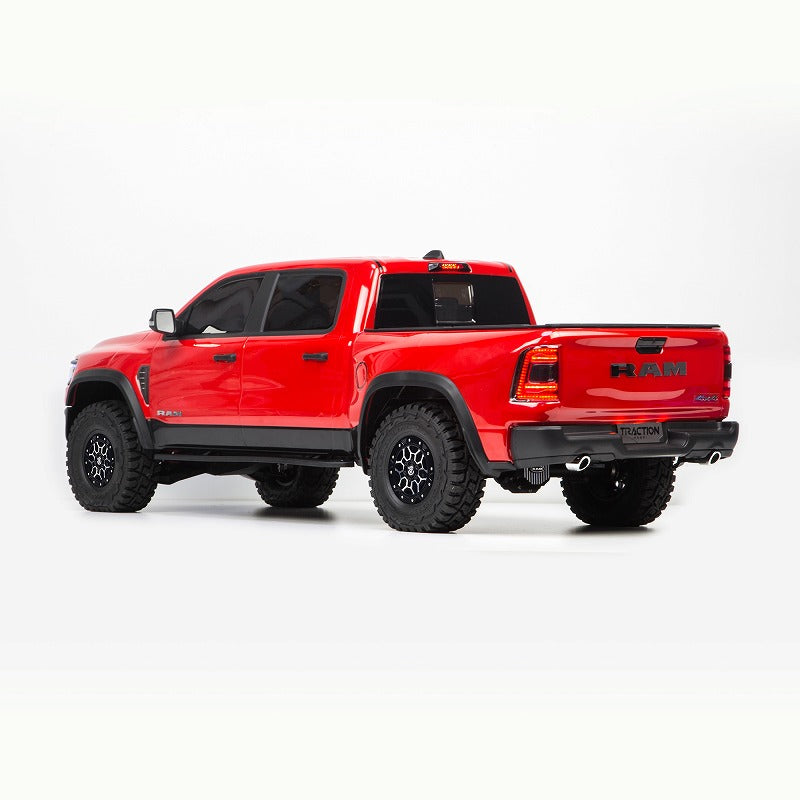

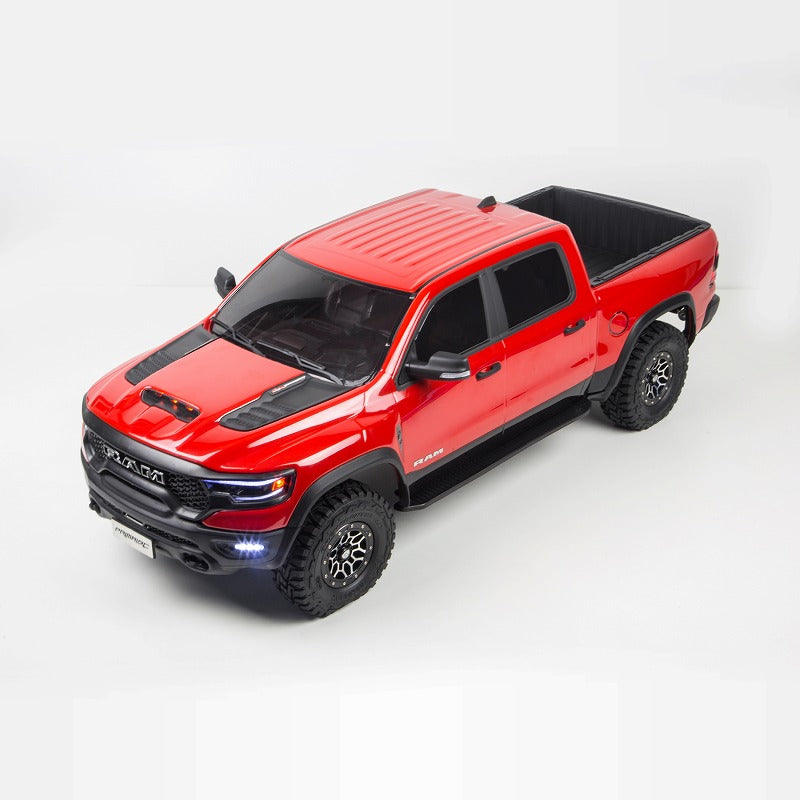

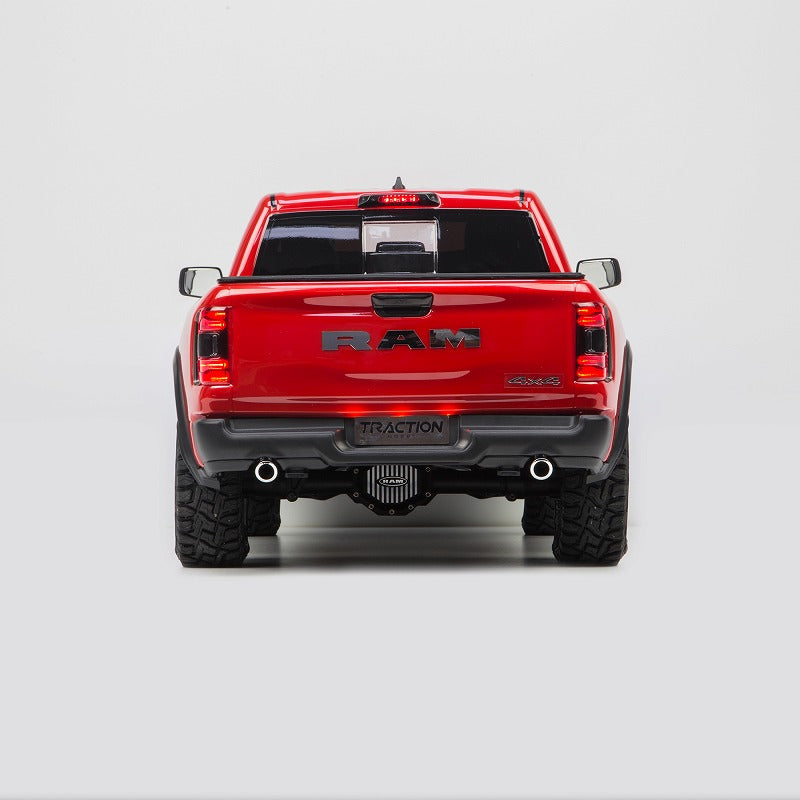

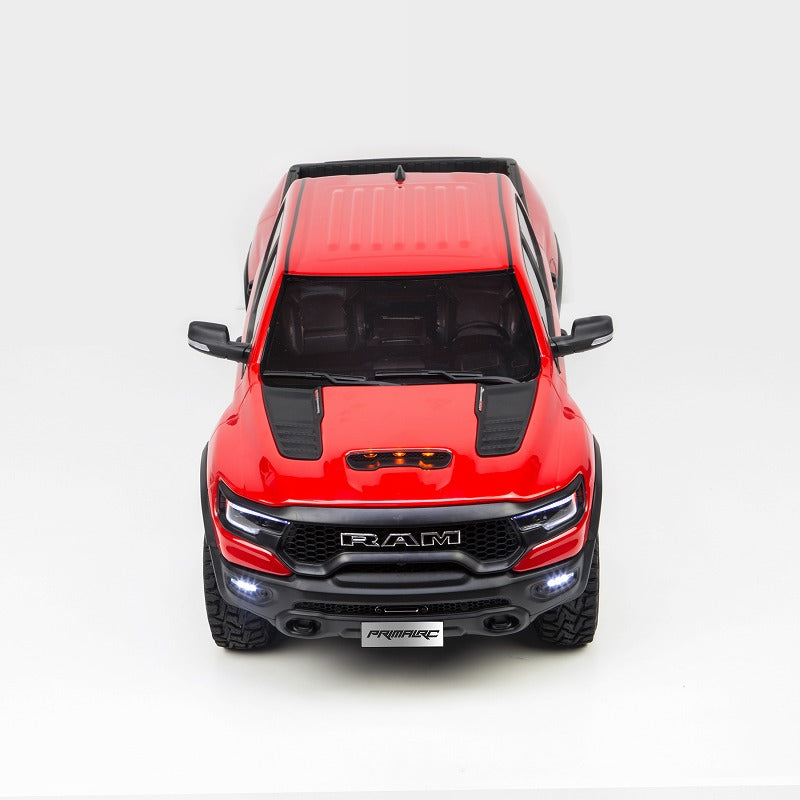

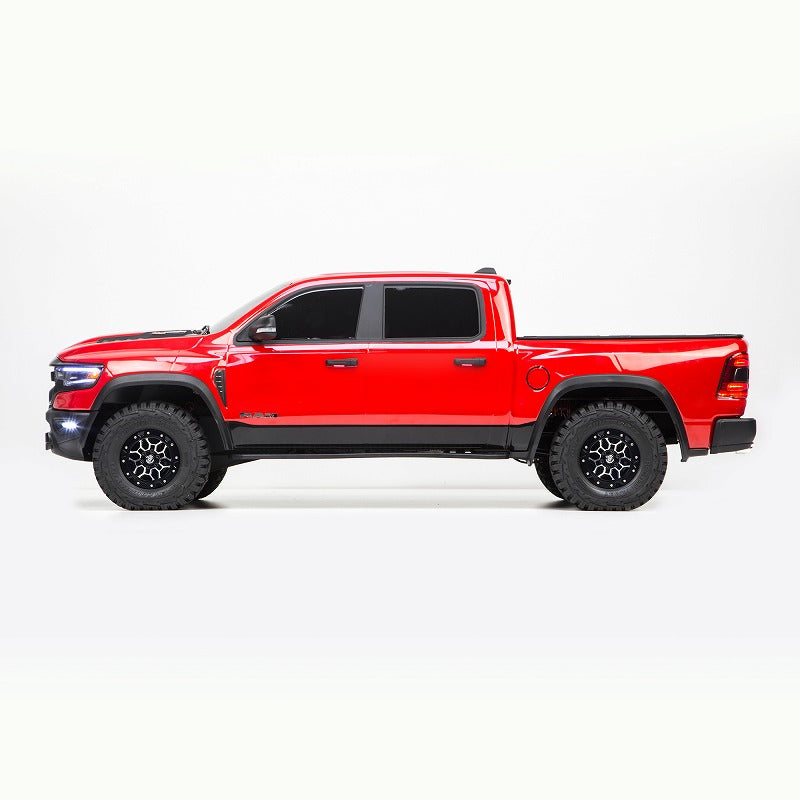

The Traction Hobby RAM 1500 BRS is a highly detailed, officially licensed 1/8-scale brushless RC trail truck, developed with Primal RC. It combines scale realism with a sophisticated drivetrain featuring selectable FWD, RWD and AWD, a remote-operated 2-speed transmission, and remote-locking front and rear differentials. Independent front suspension and a solid rear axle provide realistic handling and strong off-road articulation.
Key Features
-
1/8 scale officially licensed RAM 1500
-
BRS Brushless RS version
- Red pre-painted RAM body
- Hobbywing Fusion 8IGHT 1800KV FOC brushless system
- Selectable FWD / RWD / AWD
- Remote-operated 2-speed High/Low transmission
- Remote-locking front & rear differentials
- Independent front suspension (IFS)
- Solid rear axle with cantilever-style suspension
- All-metal transmission gears
- Heavy-duty metal driveshafts
- 1.5 mm steel C-channel chassis
- 2.2" CNC aluminum wheels
- Full metal oil-filled shocks
- Detailed scale interior
- Folding mirrors, wipers, door handles & molded truck bed
- Clipless quick-release body
- Full functional LED scale lighting system
- FlySky multi-channel computer radio system
| Specification |
Details |
| Model |
RAM 1500 BRS |
| Part No. |
TR/RAM1500RD-BRS |
| Color |
Red |
| Scale |
1/8 |
| Length |
743 mm |
| Width |
323 mm |
| Height |
262 mm |
| Wheelbase |
462 mm |
| Motor |
Hobbywing Fusion 8IGHT FOC Brushless |
| Motor KV |
1800KV |
| ESC |
Integrated 2-in-1 FOC system |
| Drive System |
Selectable FWD / RWD / AWD |
| Transmission |
Remote 2-Speed High/Low |
| Differentials |
Remote-locking Front & Rear |
| Front Suspension |
Independent (IFS) |
| Rear Suspension |
Solid Axle |
| Chassis |
1.5 mm Steel C-Channel |
| Body |
1.5 mm vacuum-formed PC/Lexan |
| Steering Servo |
TH1333 33kg Digital Coreless |
| Function Servos |
TH1036HV |
| Radio |
FlySky FS-G7P 10-Channel |
| Wheels |
2.2" CNC Aluminum |
| Tires |
115 × 42 mm |
| Front Shocks |
81 mm |
| Rear Shocks |
93 mm |
| Battery Support |
2S–4S LiPo |
| Battery Connector |
XT60 |
| Max Battery Size |
150 × 46 × 40 mm |
| Pinion |
14T standard; 12–20T supported |
Package Includes
- Traction Hobby RAM 1500 BRS RTR – Red
- FlySky FS-G7P radio system
- Pre-installed Hobbywing FOC brushless system
- Pre-installed steering & function servos
- Complete scale LED lighting system
- Optional four-link conversion components
- Optional rear sway-bar components
- Scale accessories
- Factory tool kit / decals
- Instruction manual
Required to Complete: 2S–4S LiPo battery with XT60 connector, compatible LiPo charger, and 4× AA transmitter batteries.
